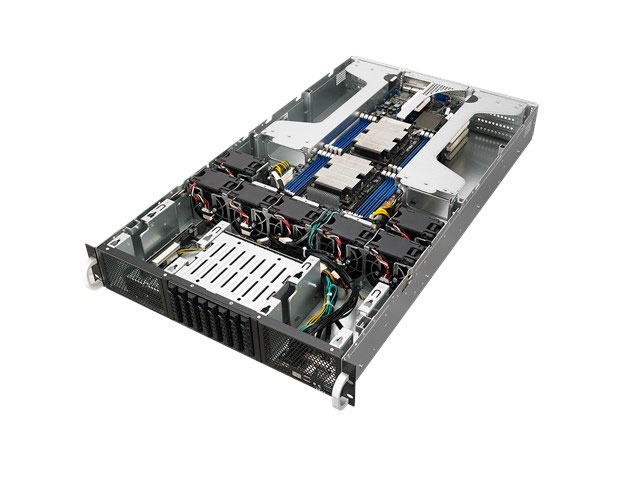

Сервер ASUS 2U ESC4000 G4S

ESC4000 G4S

Сервер ASUS ESC4000 G4S на базе процессоров Intel Xeon Scalable 165Вт, высота 2U, память максимум 2048GB LRDIMM с 16 слотами DIMM и 8 отсеками для 2,5-дюймовых накопителей с функцией «горячей» замены, 11 слотов расширения PCIe

Цена по запросу

Технические характеристики сервера ASUS 2U ESC4000 G4S

Процессор / Системная шина 2 x Socket P (LGA 3647)
1st and 2nd Gen Xeon® Scalable Processor Family (165W) Processor
UPI (10.4 GT/s)
Оперативная память Total Slots : 16 (6-channel per CPU, 8 DIMM per CPU)
Capacity : Maximum up to 2048GB LRDIMM
Memory Type :
DDR4 2933/2666/2400 /2133 RDIMM
DDR4 2933/2666/2400 /2133 LRDIMM
DDR4 2933/2666/2400 /2133 LR-DIMM 3DS
DDR4 Intel® Optane™ DC Persistent Memory
Memory Size :
64GB, 32GB, 16GB RDIMM
128GB, 64GB, 32GB LRDIMM
128GB, 64GB LR-DIMM 3DS
Слоты расширения Total: 8 + 3
Full-length/Full-height
8 * PCI-E 3.0 x16 (4 at x16 Link or 8 at x8 Link)

Half-length/Low-profile
Rear:
1 * PCI-E 3.0 x24 (support with riser card)
(1 * PCI-E x16 (x16 Gen3 Link) and 1 * PCI-E x8 (x8 Gen3 Link))
Front:
1 * PCI-E x8 (internal HBA/RAID card)
Хранилище данных SATA Controller : Intel® C621

8 x SATA3 6Gb/s ports + 1 x M.2 connector (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)
or
6 x SATA3 6Gb/s ports + 2 x NVMe drives + 1 x M.2 connector (SATA 6Gb/s & PCI-E Gen3 x4 link /2280/2260) (SATA 6Gb/s & PCIe® Gen3 x4 link /2280/2260)
Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1 )
Intel®VROC (For Linux/Windows)
(Support Software RAID 0/1 )
SAS Controller :
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support
Корпус для жесткого диска 8 x Hot-swap 2.5" HDD Bays
Сеть 1 x Dual Port Intel Ethernet Controller i350-AM2 + 1 x Mgmt LAN
Графика Aspeed AST2500 with 64MB
Разъемы на передней панели 1 x 80 port
2 x USB 3.0 ports + 2 x USB 2.0 ports
Rear I/O Ports 2 x USB 3.0 port
1 x VGA port
1 x RJ-45 Mgmt LAN port
2 x RJ-45 GbE LAN ports
Switch/LED Rear Switch/LED:
1 x Power switch/LED
1 x Location LED
1 x Message LED
1 x HDD Access LED
Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
2 x LAN LED
1 x Message LED
1 x HDD LED
Администрирован-е ACC
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance BSMI, CE, RCM, FCC(Class A)
Размеры 800mm x 440mm x 88mm
Форм-фактор 2U
Электропитание 1+1 Redundant 1600W 80 PLUS Platinum Power Supply
100-127Vac,12.9A,1000W
200-240Vac,9.5A, 1600W

1+1 Redundant 2200W 80 PLUS Platinum Power Supply
Rating: 100-127Vac/200-240Vac,12.9A/9.5A (x2), 47-63Hz
*2200W Power supply is only available for selected countries.
Экология Operation temperature: 10 ~ 35 / Non operation temperature: -40 ~ 70
Non operation humidity: 20% ~ 90% ( Non condensing)
